This walkthrough provides an overview of how to synchronize vendor master data.
This is a simple replication demonstrating how you can use the same internal document for both publication and subscription connections when the table structure is the same, saving time and effort.
Prerequisites
You can create two companies for demonstration purposes. In the following scenario:
CRONUS International Ltd.: publishing company
CRONUS Sales: subscription company
Template | Description | Type | Company |
|---|---|---|---|
TI_RM_VENDOR.OUT | STAEDEAN Template: Publish Vendors for Synchronization | Publication | CRONUS International Ltd. |
TI_RM_VENDOR.IN | STAEDEAN Template: Subscribe Vendors for Synchronization | Subscription | CRONUS Sales |
Publish vendors template
Story

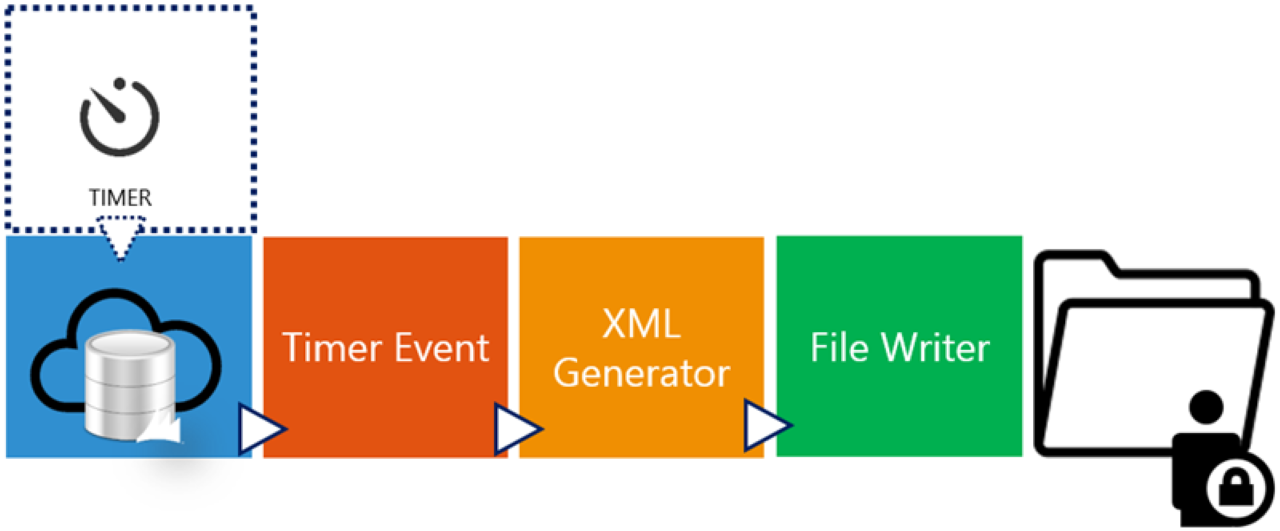

This connection uses the following pipeline elements:
The Timer Event triggers the pipeline.
The XML Generator activity creates an XML file based on the internal document.
The File Writer endpoint stores the created XML file at a specified file location.
Setup
Select the publishing company.

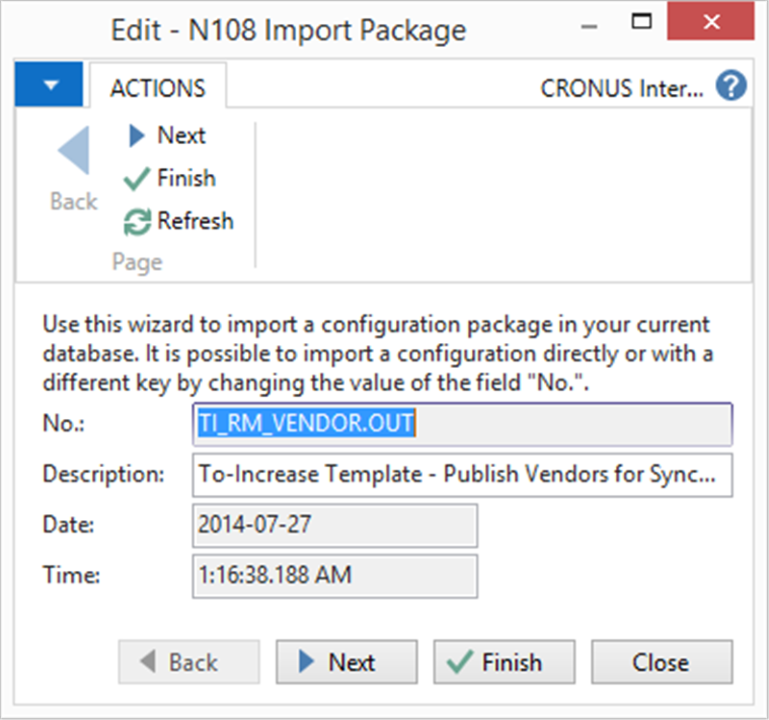

Import the Publication-TI_RM_Vendor.OUT.zip configuration package.

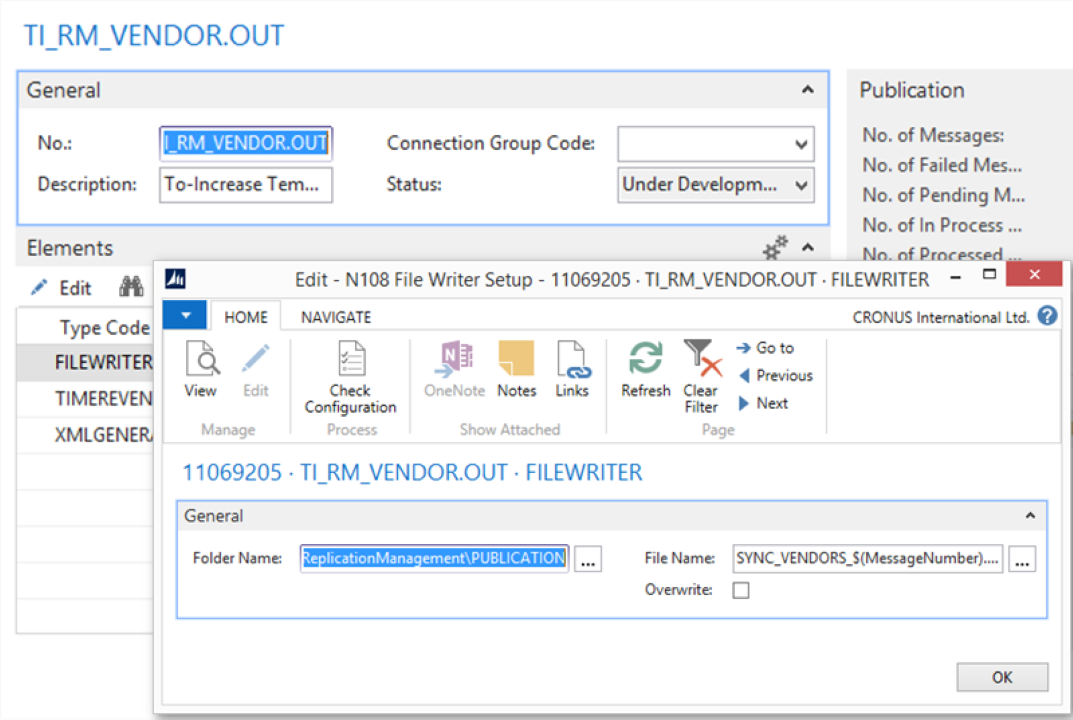

Open the TI_RM_VENDOR.OUT connection. On the connection page, edit the File Writer settings and enter the folder name.
Process
Process the connection.
Check the output folder location.
Result

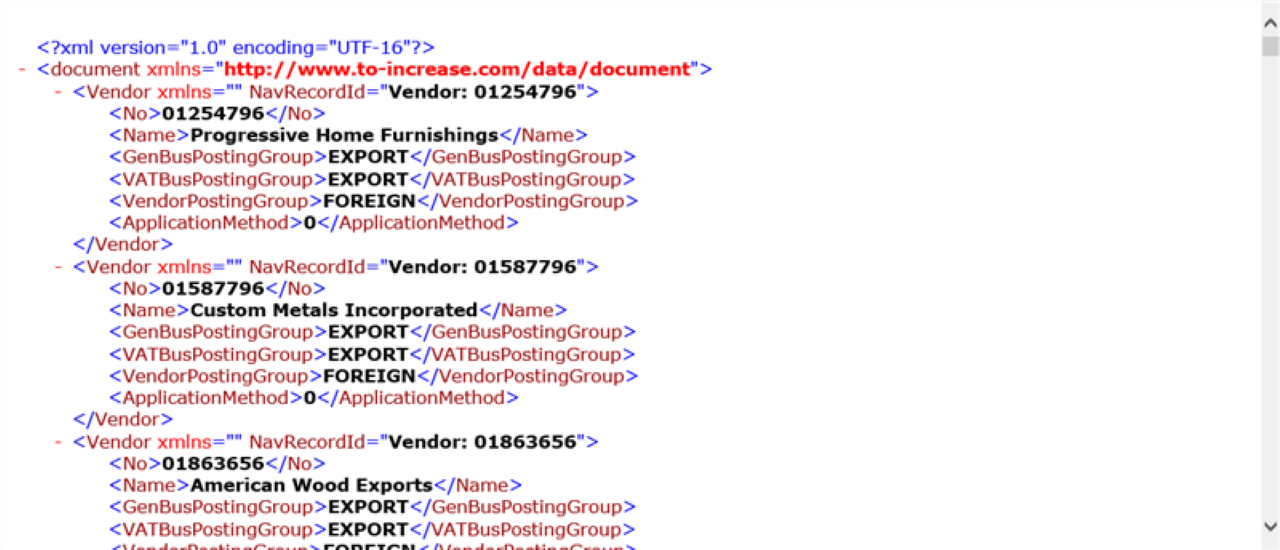

One XML file with a complete overview of your vendors is created and available at the specified location.
Subscribe vendors template
Story

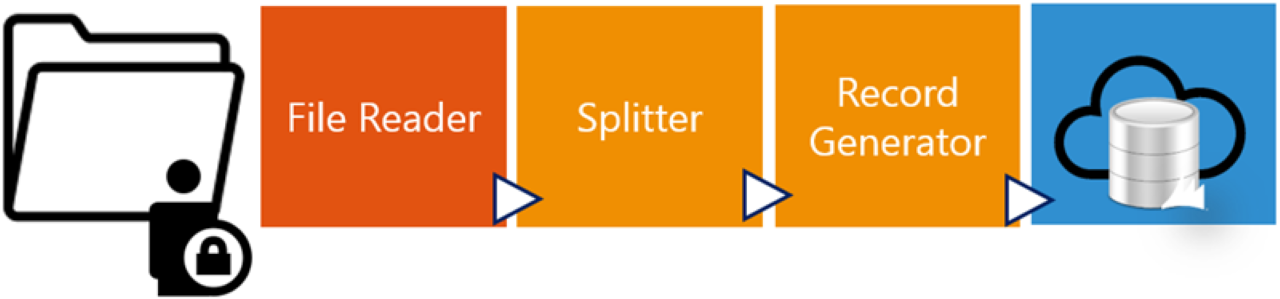

This connection uses the following pipeline elements:
The File Reader endpoint reads the published file from the file system.
The XML file contains a complete list of vendors. The Splitter activity creates one message per vendor for proper traceability.
The Record Generator activity creates records and updates the D365 BC tables based on the internal document.
Note
In this scenario, the table structure is the same as in the publishing company, and the various posting groups (Gen. Bus. Posting Group, VAT Bus. Posting Group, and Vendor Posting Group) already exist in the system. Therefore, the same internal document as the publishing connection is used.
Setup
Select the subscription company.

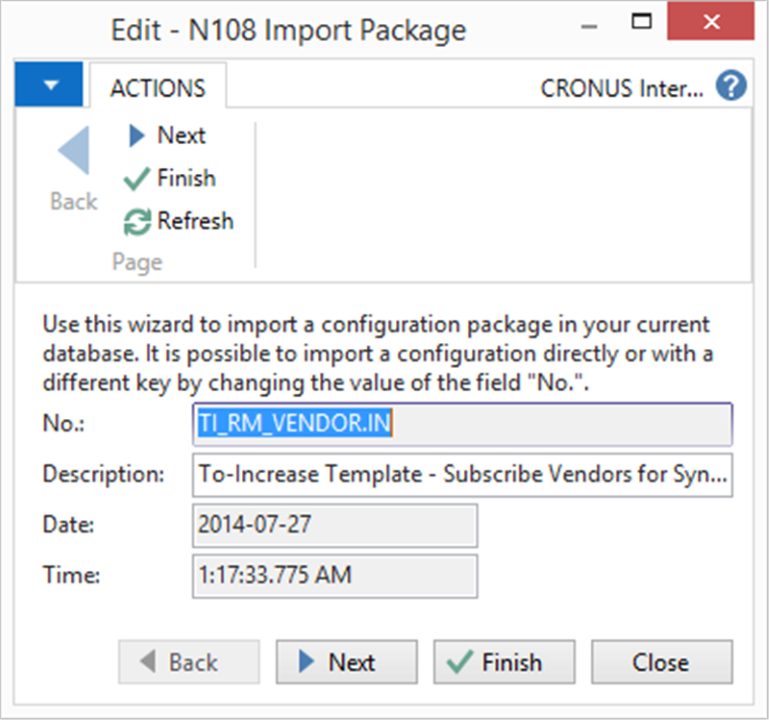

Import the Subscription-TI_RM_VENDOR.IN.zip configuration package.

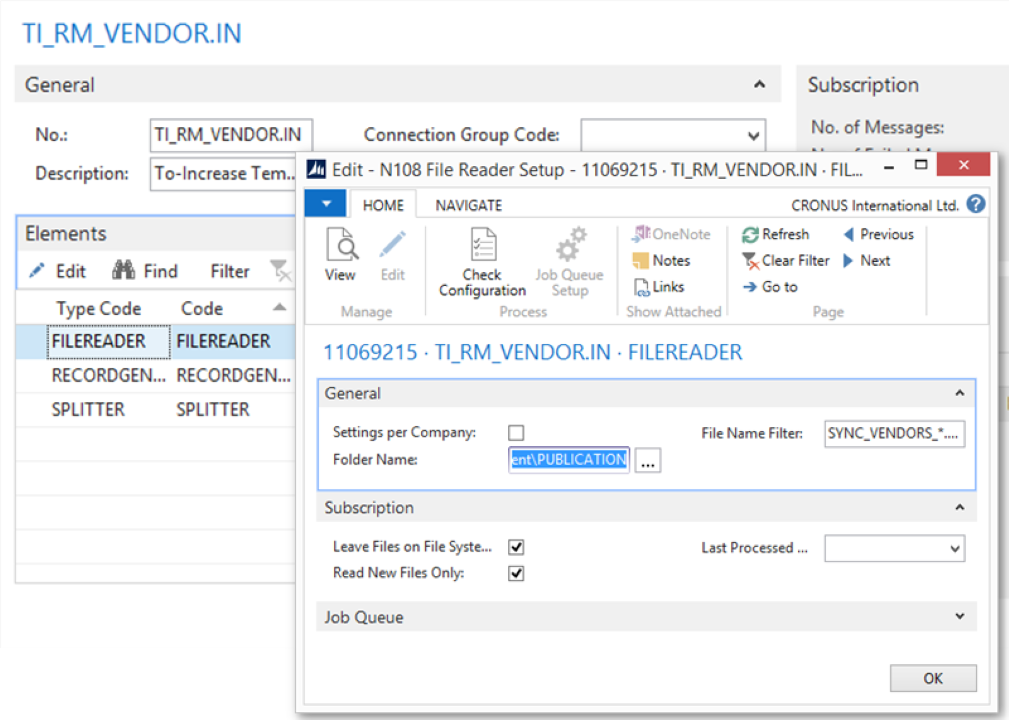

Open the TI_RM_VENDOR.IN connection. On the connection page, edit the File Reader settings and enter the folder name.
Note
The File Reader endpoint includes typical Replication Management properties: Leave File on File System, Read New Files Only, and Last Processed at. In many cases, the internal document from the publication connection can reuse for the subscription connection.
Process
Process the connection.

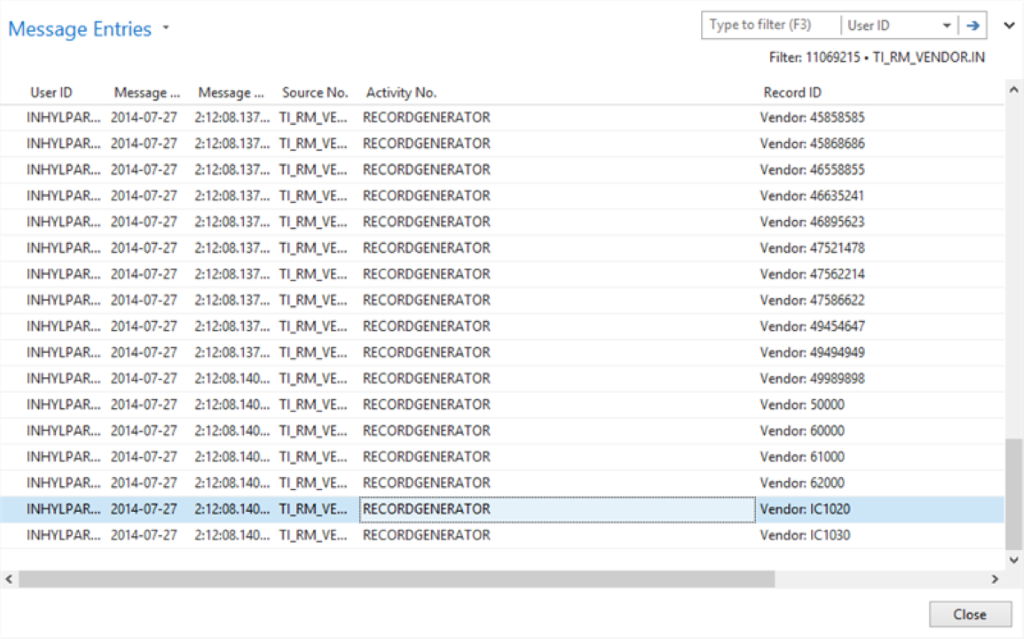

If processing succeeds, select History to check the result. Select the message entry, then select Actions > Show Record.
Result
The vendors are imported. You can also use the Transaction Log to see more details for each import.
