LiteralHTML example - Embed a map

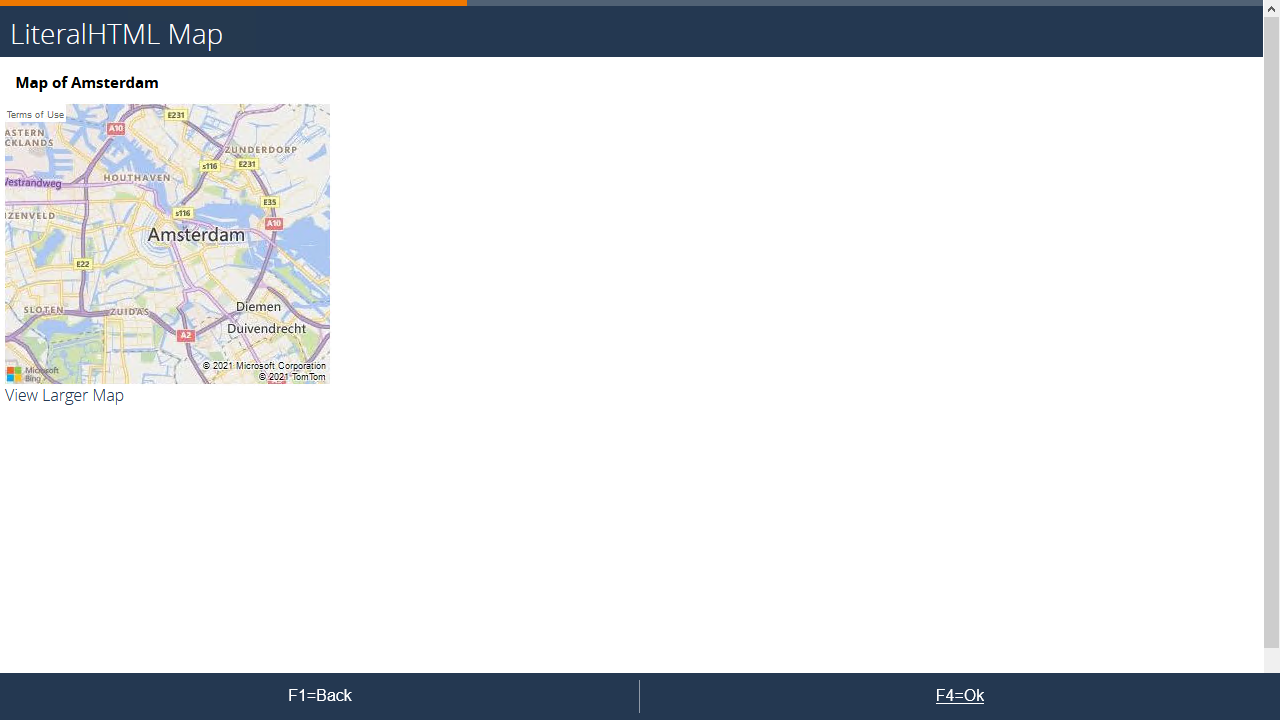

Example

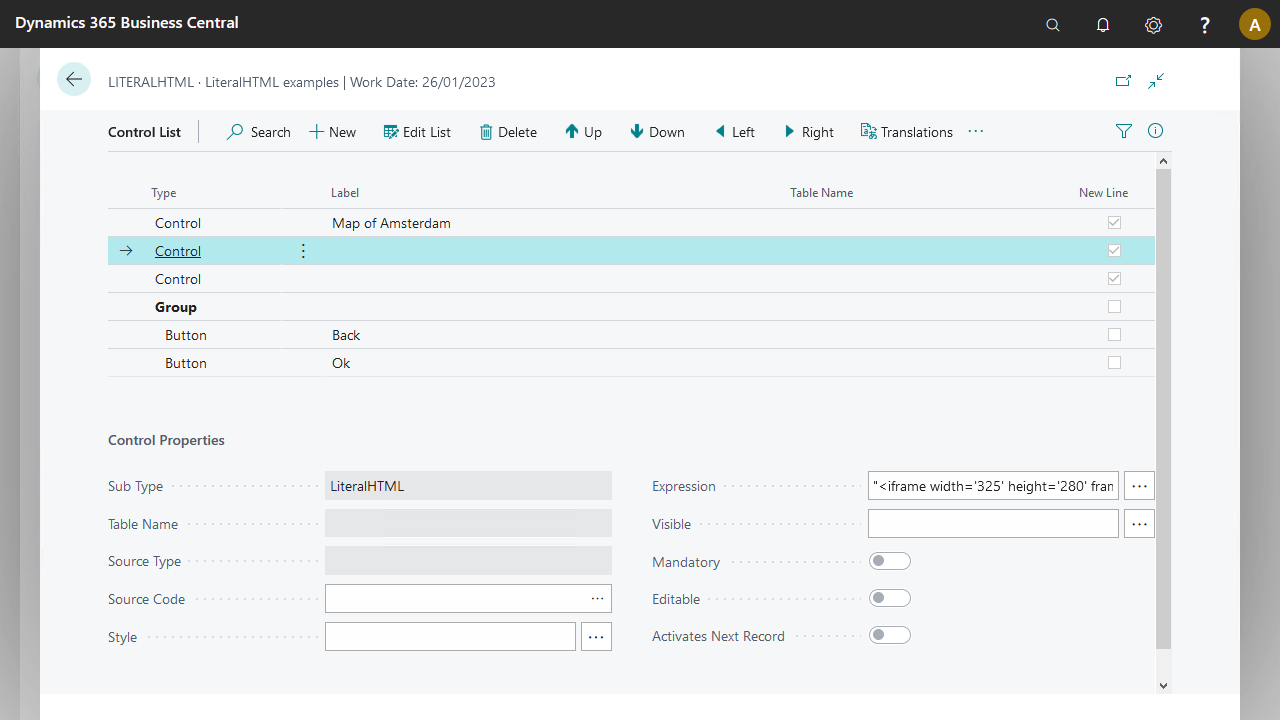

Setup

The map requires some preparation because the example code cannot be copied directly from the generated code.

Generate the base code from Azure Maps.

<div>
    <iframe width='325' height='280' frameborder='0' src='https://www.bing.com/maps/embed?h=280&w=325&cp=52.3673008~-4.8998197&lvl=11&typ=s&sty=r&src=SHELL&FORM=MBEDV8' scrolling='no'>
    </iframe>
    <div style='white-space:nowrap;text-align:center;width:325px;padding:6px 0;'>
    <a id="largeMapLink" target="_blank" href='https://www.bing.com/maps?cp=52.3673008~-4.8998197&amp;sty=r&amp;lvl=11&amp;FORM=MBEDLD'>View Larger Map</a>
    </div>
</div>

Adapt this code to produce the following expression in the LiteralHTML control for the map:

"<iframe width='325' height='280' frameborder='0' src='https://www.bing.com/maps/embed?h=280&amp;w=325&amp;cp="+Field("source/parameter/LATITUDE")+"~"+Field("source/parameter/LONGITUDE")+"&amp;lvl="+Field("source/parameter/ZOOM")+"&amp;typ=s&amp;sty=r&amp;src=SHELL&amp;FORM=MBEDV8' scrolling='no'></iframe>"

The adaptations made:

• Removed the encapsulating HTML elements (divs)

• Replaced all double quotes with single quotes: otherwise the expression is invalid

• Replaced & in the URL with & to send the control to the client correctly

• Incorporated parameters for the latitude, longitude, and zoom level

The link to view the larger map stores in the second LiteralHTML control:

"<a id='largeMapLink' target='_blank' href='https://www.bing.com/maps?cp="+Field("source/parameter/LATITUDE")+"~"+Field("source/parameter/LONGITUDE")+"&amp;sty=r&amp;lvl="+Field("source/parameter/ZOOM")+"&amp;FORM=MBEDLD'>View Larger Map</a>"

More details are in the download.
